Aluminum strip/foil for power transformer winding 1050/1060/1080/1100/1350

Product Detail

Product Tags

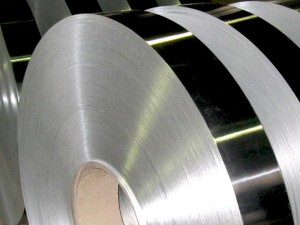

 Aluminum strip/foil for power transformer winding 1050/1060/1080/1100/1350

Aluminum foil /strip with round edge without burr and flashing

Technical Specifications
1、Alloy: 1050/1060/1080/1100/1350
2、Temper:  H12,H14,H16,H18
3、Thickness: 0.2mm–2.0mm
4、Width: 50–1200mm
5、Packing: Eye to wall and eye to sky, wooden pallet and wooden case
6、U. T. S: 60-95N/mm2
7、Elongation: >25%
8、Max. Resistance in 20 degree: ≤ 0.02825Ω Mm2/m
9、Density in 20 degree: 2.703kg/dm3
10、Burr's height: 0.01–0.03mm vary with thickness of the strip
11、Collapsed side's height: 0.05–0.1mm

12、Surface: Free of oil,free of scratches

As a chinese leading aluminum products manufacturer,we can give you the best service and most reasonable price.We also provide 5 bar aluminum tread plate,  aluminium slit coil, anodising aluminum sheet,aluminum sheet, diamond aluminum tread plate, and more. Whenever you have a need for any of our products, please feel free to contact us .
